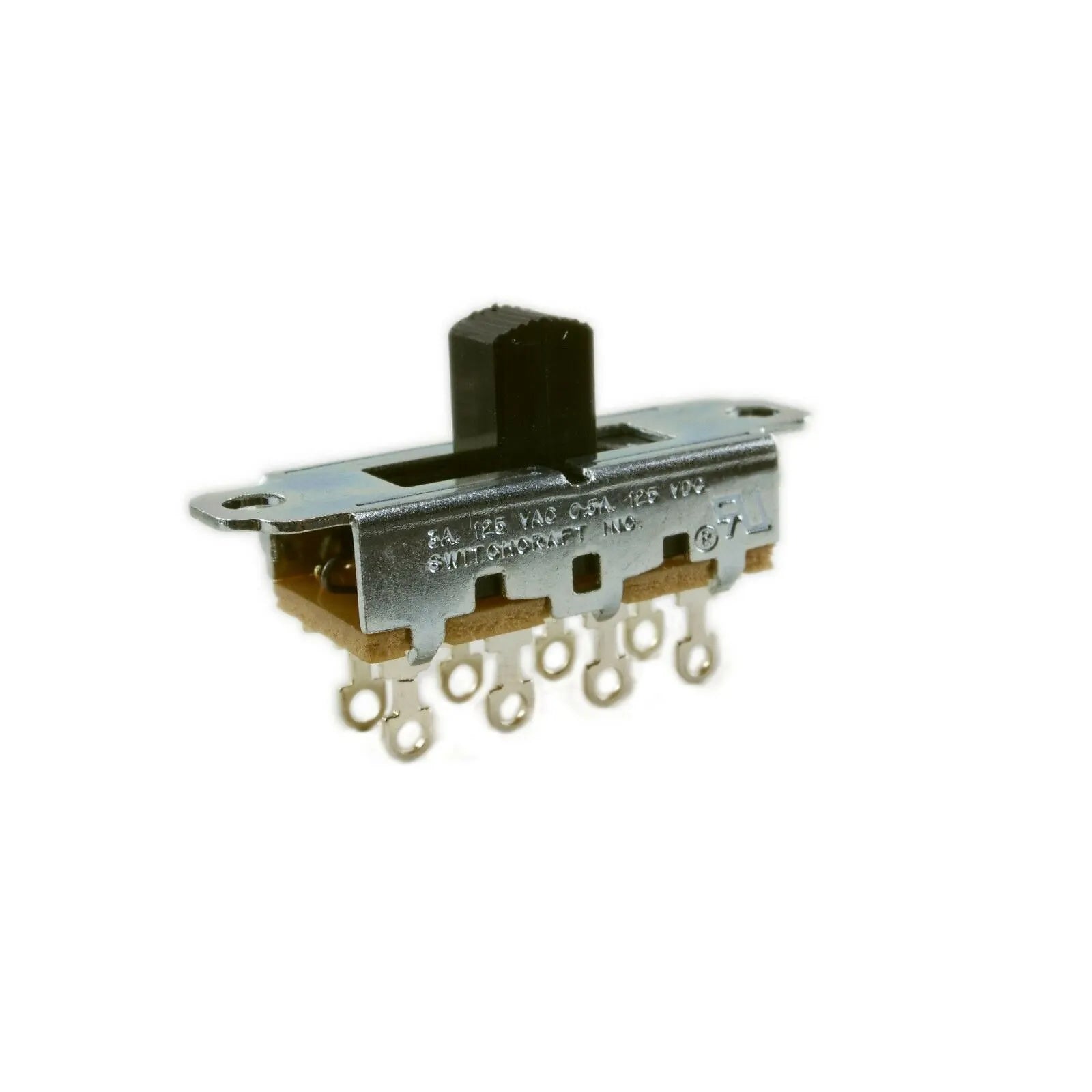

Switchcraft 3 way slide switch for - Fender mustang , Fender Duo-Sonic

Fender Mustang and Duosonic guitars. DP3T (double-pole/triple-throw), on/on/on switch has eight lugs, four on each pole.

Manufacturer: Switchcraft
RoHS: RoHS Compliant Details
Contact Form: DP3T
Switch Function: ON - ON - ON
Contact Rating: 3 Amps at 125 Volts
Termination Style: Solder Terminal
Actuator: Extended, Top
Mounting Style: Panel
Contact Plating: Silver
Contact Material: Copper Alloy
Mounting Angle: Vertical
Operating Temperature Range: - 20 C to + 70 C
Voltage Rating AC: 125 V
