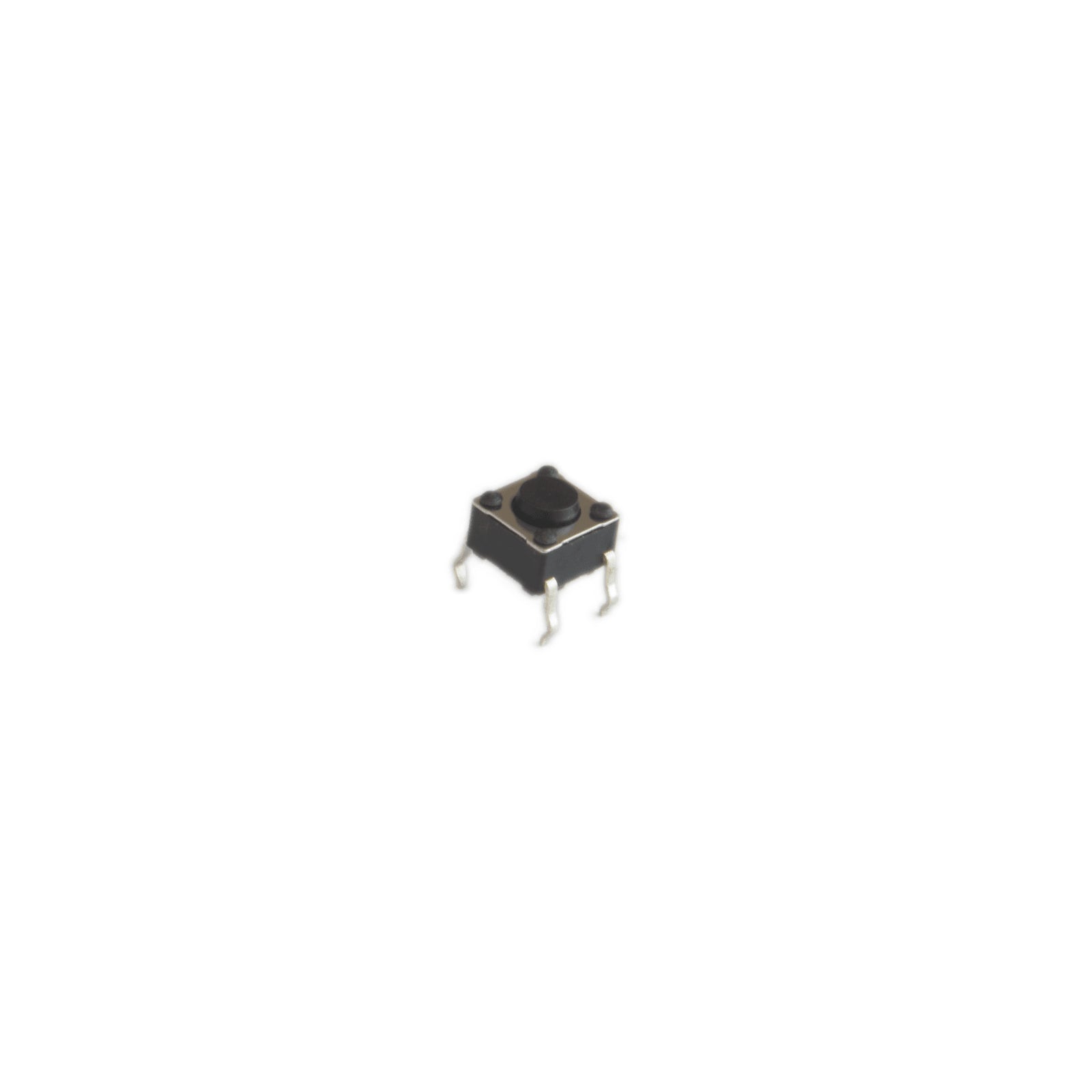

This is a compact, square pushbutton switch measuring 6mm x 6mm (1/4" x 1/4"). The body of the switch is 3.0mm tall (excluding the plunger), with the plunger extending 1.5mm above the switch housing.
Designed for through-hole mounting on printed circuit boards (PCBs), this momentary-action switch features a Single Pole Single Throw (SPST), normally open (NO) configuration. It has four legs — two of which are redundant for added mechanical stability.
Commonly used in effects pedals, front panel controls, and other applications, this switch is compatible with a variety of Line 6 products, including:
